Video Wall

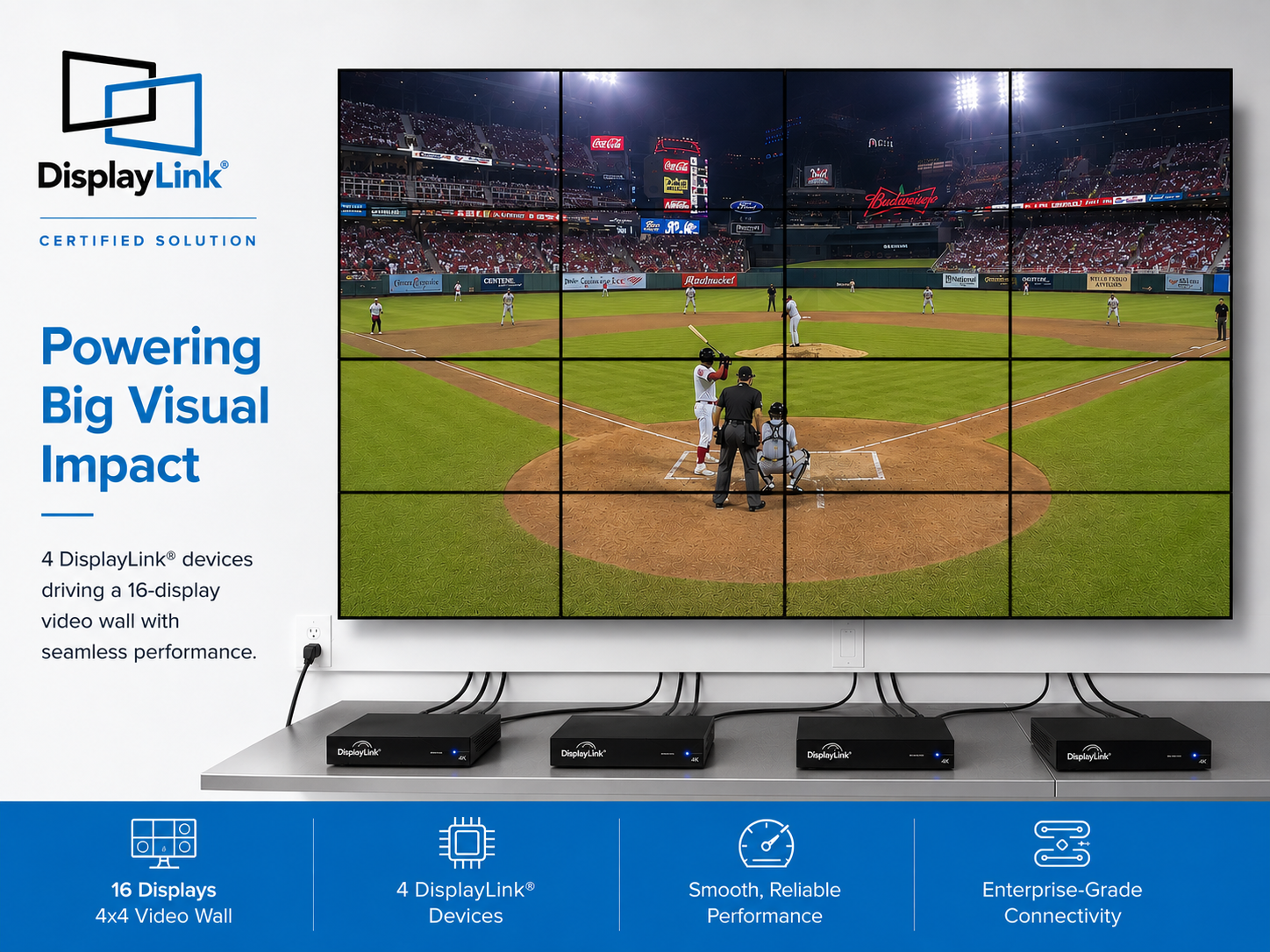

Video Wall Application

Overview

The Video Wall sample demonstrates how to use the DisplayLink Direct API to create a video wall by distributing a single image or video stream across multiple connected DisplayLink displays. It supports applications such as digital signage, control centers, and entertainment venues.

Source Code

The complete implementation of the Video Wall sample is available in samples/video/video-wall.cpp.

Building and Running

Prerequisites

  • DisplayLink Direct installed.
  • CMake 3.10 or higher.
  • C++17-compatible compiler.
  • VLC or GStreamer libraries for media playback.

Ubuntu Dependencies

Install dependencies for one backend (VLC or GStreamer), depending on how you want to build:

# Common build tools
sudo apt update
sudo apt install -y build-essential cmake pkg-config

# VLC backend dependencies (default)
sudo apt install -y libvlc-dev

# GStreamer backend dependencies (optional)
sudo apt install -y \
    libgstreamer1.0-dev \
    libgstreamer-plugins-base1.0-dev \
    gstreamer1.0-plugins-base \
    gstreamer1.0-plugins-good \
    gstreamer1.0-plugins-bad \
    gstreamer1.0-libav

Build Instructions

Navigate to the sample directory and build using CMake:

# CMAKE_PREFIX_PATH should point to dlsdk directory with libs/, firmware/, include/
# e.g. to root of this repository
cd samples/video

# Build with VLC backend (default)
cmake -DCMAKE_PREFIX_PATH=../.. -S . -B build
cmake --build build

# Build with GStreamer backend
cmake -DCMAKE_PREFIX_PATH=../.. -DUSE_GSTREAMER=ON -S . -B build-gst
cmake --build build-gst

Running the Application

Run the video-wall application with an image or video file:

# Display a single image across all connected monitors
./build/video-wall /path/to/image.png

# Display with rotation
./build/video-wall /path/to/image.png rotate

# Display with timeout (in seconds)
./build/video-wall /path/to/video.mp4 rotate 30

# If you built the GStreamer backend
./build-gst/video-wall /path/to/video.mp4 rotate 30

Parameters

  • filename (required): Path to the image or video file to display.
  • rotate (optional): Add this parameter to enable rotation of the content.
  • timeout (optional): Duration in seconds to run the application. If omitted, press Enter to exit.

Notes

  • The application supports 2 × 2 layouts (four displays) or linear arrangements (any number of displays).
  • All monitors must have the same resolution for proper alignment.
  • Use Ctrl+C or the specified timeout to exit the application gracefully.
